Sapphire optics
The author :    time : 2020-02-24     Click on the number of times : 315
sapphire window

Optical Grade Sapphire Optics

Laser Quality Sapphire Optics

Sapphire crystal is extremely hard and scratch resistant useful for the visible and ir spectrum. Optical sapphire is made to a random orientation or cut to a specified orientation. It has excellent thermal conductivity at low temperatures allowing single crystal sapphire to be used in many diverse fields requiring thermal conduction and heat radiation. Sapphire has high dielectric constant and is resistant to common chemical acids and alkaline. Optical sapphire has no colouration and with a selection of grades of sapphire transmission ranging from 170nm to 6 microns .

Laser Optex manufacture optical grade sapphire windows, Laser Quality sapphire windows, sapphire lenses, sapphire prism and sapphire dome. The sapphire optics can be made in various shapes, sizes and forms ie squares, plates, rectangles and discs, with various processing to the faces and edges.

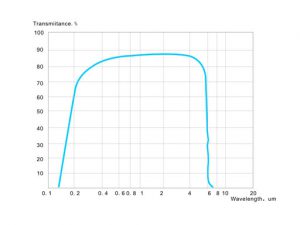

Sapphire curve
   Typical Applications
Coin sensorsImaging optics
Furnace view portsCryogenic view ports
Infrared measuring devicesPolarization sensitive optics
Medical & Industrial gas analysisEndoscopic components
Pressure & Detection cellsShort wavelength (UV) optics
Scanner windowsFocusing optics & reticles
UV, Visible & IR windowsRefractometer Windows


Sapphire optics

Optical grade
Laser Quality
Material
Sapphire single crystal

Orientation

C-cut
C- cut

Diameter Tolerance

+0.0/-0.1mm

Thickness tolerance

±0.2mm
±0.05mm

Clear Aperture

>90%

Parallelism

<1'
10 "

Surface Quality

60-40 scratch and dig
10-5

Wavefront Distortion

1/2λ per 25mm at 632nm
λ/10 per 25 mm

Bevel

<0.25mm × 45º

Standard catalog and pirce list of optical grade sapphire window

Part No

Dimension

Price
mm
inch
1-10pcs
10-25pcs
Lead time
SP0205
Φ2.5× 0.50.01"×0.0196"
$20.00
$15.00
2 weeks
SP0501
Φ5.0× 1.00.196"× 0.040"
$20.00
$15.00
2 week
SP0605
Φ6.35×0.50.250"× 0.0196"
$20.00
$15.00
2 weeks
SP0705
Φ7.5×0.50.300"×0.020"
$20.00
$15.00
2 week
SP0905
Φ9.5×0.50.375"×0.020"
$20.00
$15.00
2 weeks
SP1001
Φ10×1.00.394"×0.040"
$20.00
$15.00
2 weeks
SP1205
Φ12.7×0.50.500"×0.02"
$25.00
$20.00
in stock
SP1230
Φ12.7×3.00.500"×0.125"
$30.00
$22.00
in stock
SP1510
Φ15.8×1.00.625"×0.04"
$25.00
$20.00
in stock
SP1520
Φ15.8×2.00.625"×0.08"
$30.00
$22.00
2 weeks
SP1530
Φ15.8×3.00.625"×0.125"
$30.00
$22.00
in stock
SP1720
Φ17×2.00.700"×0.08"
$40.00
$30.00
2 weeks
SP1930
Φ19×3.00.750"×0.08"
$40.00
$30.00
in stock
SP2020
Φ20×2.00.784"×0.08"
$45.00
$32.00
2 weeks
SP2301
Φ23×1.00.900"×0.04"
$50.00
$45.00
2 weeks
SP2510
Φ25×1.00.980"×0.04"
$50.00
$45.00
in stock
SP2520
Φ25×2.00.98"×0.08"
$52.00
$47.00
2 weeks
SP2542
Φ25.4×2.01.000"×0.08"
$52.00
$47.00
in stock
SP2543
Φ25.4×3.01.000"×0.125"
$55.00
$45.00
in stock
SP3105
Φ31×0.51.250"×0.02"
$62.00
$52.00
2 weeks
SP3110
Φ31×1.01.250"×0.04"
$60.00
$50.00
in stock
SP3120
Φ31×2.01.250"×0.08"
$60.00
$50.00
2 weeks
SP3130
Φ31×3.01.250"×0.125"
$60.00
$50.00
in stock
SP3503
Φ35×1.01.370"×0.04"
$65.00
$55.00
2 week
SP3502
Φ35×2.01.370"×0.008"
$60.00
$55.00
2 weeks
SP3820
Φ38×2.0
1.500"×0.08"
$80.00
$70.00
in stock
SP4020
Φ40×2.01.5740"×0.08"
$100.00
$90.00
4 weeks
SP5010
Φ50×1.02.00"×0.04"
$120.00
$100.00
4 weeks
SP5020
Φ50×2.02.00"×0.08"
$150.00
$140.00
4 weeks
SP5030
Φ50×3.02.00"×0.125"
$160.00
$140.00
in stock

Laser Quality Sapphire windows

plane parallel windows are designed for use in critical optical and laser applications where image quality and birefringence effects are important. The raw material has minimal lattice distortion and is oriented with the optic axis normal to the faces to minimize the inherent birefringent properties of single crystal sapphire. Flatness and surface finish are optimized to provide for the least amount of error in the transmitted wave front. Typical applications include:


  • Laser Mirrors
  • Laser Beam splitters
  • Laser Output Couplers
  • Imaging optics
  • Optical Flats & Etalons
We maintain a substantial inventory of these parts and most are available for shipment from stock.

Part No.
Dimension mm
Orientation
Price 1-10pcs
Lead time
PSP122
Φ12.7x2.0
C-cut
$80
in stock
PSP123
Φ12.7x3.0
C-cut
$80
in stock
PSP192
Φ19x3.0
C-cut
$90
in stock
PSP193
Φ19x3.0
C-cut
$90
in stock
PSP253
Φ25.4x3.0
C-cut
$100
in stock
PSP385
Φ38.1x5.0
C-cut
$230
in stock
PSP505
Φ50x5.0
C-cut
$390
in stock

Custom size and AR Coating are available.

Large discount for batch quantity , please contact sales@laseroptex for quotation
