ZnSe viewport
The author : time : 2016-06-15 Click on the number of times : 585

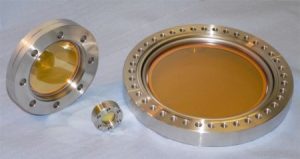

ZnSe Vacuum viewport for CO2 laser application
Laser Optex Inc. - offer a range of competitively priced ZnSe UHV viewports ,with Conflat flange including a variety of Broadband coatings to enhance performance.
Laser Optex Inc. uses advanced techniques for control of special and critical processes, including 100 percent helium leak testing.
Windows Materials: Laser Grade ZnSe material
Coating - a range of custom coatings can applied - which include
- Broadband AR coating (BBAR2-12um,8-14um)
- V AR coatings for high-power laser ( AR10.6um)
- Other custom coating are available by design
Specification
Specifications | |
Flange | 304ss/316L |
window | Laser Grade ZnSe crystal |
Window quality | Surface quality: 60-40 after coating Flatnss: 1/2 λ at 633nm |
Vacuum Range UHV | 1x10-11 Torr |
Temperature Range | -100ºC to 150ºC |
Coating | AR10.6um or BBAR3-12um coating |

Part No. | Flange size D inch | Flange material | View dia. V | Thk window T mm | Thk flange H mm | Price USD | Lead time |
ZSUHV16 | CF16 1.33 | 304ss | 12 | 2 | 15 | 250 | stock |
ZSUHV 25 | CF25 | 304ss | 20 | 2.5 | 15 | 450 | stock |
ZSUHV 35 | CF35 2.75 | 304ss | 35 | 3.5 | 16 | 560 | stock |
ZSUHV 50 | CF50 | 304ss | 50 | 5 | 18 | 1500 | stock |
ZSUHV 63 | CF63 | 304ss | 63 | 6 | 20 | 2500 | stock |
ZSUHV 100 | CF100 | 304ss | 89 | 10 | 20 | 4500 | stock |
ZSUHV 150 | CF150 | 304ss | 136 | 12 | 25 | 6 weeks |
B: we can design custom ZnSe viewport by your requirement
Custom ZnSe viewport with BBAR coating are availabe.
More discount for batch quantity , please contact sales@laseroptex for quotation
Download: AR Coating ZnSe Viewport Price list 2012
