High quality optical viewport
The author :    time : 2016-06-15     Click on the number of times : 119
Custom High quality viewport  for your optical application



Laser Optex Inc. - offer a range of competitively priced  High quality optical viewports ,with Conflat flange including a variety of Broadband coatings to enhance performance.

Laser Optex Inc. uses advanced techniques for control of special and critical processes, including 100 percent helium leak testing.

Windows Materials include:
BaF2, CaF2, IR Grade MgF2 , IR grade Fused silica, KBr, Sapphire, Si, Ge, ZnSe, ZnS etc

Coating - a range of custom coatings can applied - which include
- Broadband AR coating for IR waveband  (BBAR 2-5um, 3-5um,3-12um)
- V AR coatings for high-power laser (AR10.6um, AR3.5um, AR1.5um)
- Custom coating are available by design
Standard Viewing diameters from .55" to 8 ".

Specification
Specifications
Flange304ss/316L/316LN
AdapterKovar®/Tantalum
LensBaF2 , CaF2, MgF2 , IR grade Fused silica , Sapphire , Si , Ge, KBr, ZnSe ,ZnS .
Lens quaitySurface quality 20-10 after coating

Flatness: 1/8 λat 633nm per inch
Vacuum Range UHV / HV1x10-11 Torr / 1x10-10 Torr
Temperature Range1-100ºC to 150ºC

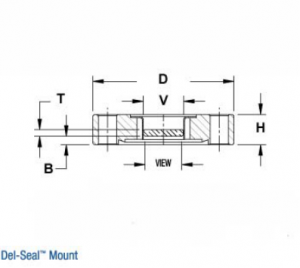

Part No.Flange size

D   inch
Window

material
View dia.

V
Thk window

T   mm
Thk flange

   H   mm
Price

USD
Lead time
SACF16-ACF16  1.33304ss12115 stock
SACF25-ACF25  304ss201.515 stock
SACF35-ACF35  2.75304ss35216 stock
SACF50-ACF50304ss50318 stock
SACF63-ACF63304ss63420 stock
SACF100-ACF100304ss100520 stock
SACF150-ACF150304ss136625 stock

B:   we can custom design by your requirement



Custom High quality optical viewport with AR coating are availabe.

More discount for batch quantity , please contact sales@laseroptex for quotation.



IR Grade CaF2 Viewport Price list 2012

BaF2 Viewport Price list 2012
