Quartz slide& Coverslips
The author : time : 2020-02-24 Click on the number of times : 1068
UV Quartz slide& Coverslips Full thickness in stock
UV grade Quartz Microscope Slides& cover slips
Fused quartz microscope slides are thin, polished quartz materials used for their absolute UV transparency in medical, scientific and research applications.
Quartz Microscope slides have many applications for use in UV microscopy and UV confocal microscopy. As with quartz cover slips for chemical microscopy an important equation is that nothing is lost due to the absorption factor.
Fused quartz transparent microscope slides are useful for high temperature experiments due to the thermal and mechanical properties of fused quartz.
Laser Optex can now offer quartz slides in UV grade fused silica JGS1, a form of quartz that is even higher in purity than GE 124.
Meanwhile, Laser Optex also can produce the Special Microscope Slides as your requirement, We can design Microscope slides in other optical material such as BK7 Glass, Borosilicate, Quartz crystal, Sapphire ,CaF2,BaF2, MgF2, Silicon, Ge, ZnS, ZnSe etc, please contact us by e-mail sales@laseroptex, our sales will quote the price in 24hours.
Roughness: Not to be confused with the term "flatness", the roughness, which is sometimes referred to as "smoothness", can be measured with AFM and while we can't guarantee it as a specification, our periodic measurements with AFM suggest that the typical roughness is better than 2 nm. Some of our customers are now asking us to supply them with quartz slides that exhibit a surface roughness better than that. We are now able to offer the with surface roughness better than 0.5 nm.
High temperature applications: The Laser Optex Quartz Slides are often times used as substrates for high temperature experiments and we are asked about how high in temperature the slides can be taken before changes occur. That temperature is about 1250C as the slide will start to soften at about this point.
UV grade fused silica microscope slides are more suitable when higher transmission is required in the ultraviolet. UV fused silica has equal thermal and mechanical properties to quartz but is generally more expensive.
Standard grade UV fused quartz in stock
Note: Other sizes and thickness are available upon request.
Large discount for batch quantity , please contact sales@laseroptex for quotation
UV Fused Silica Cover Slides
Quartz Cover Slips are ultra thin polished quartz glass substrates used for their absolute UV transparency for medical, scientific and research applications. When viewing the surface a quartz cover slip can slow evaporation and compress the most viewed object to protect the microscope lens.
Note: Other sizes and thickness are available upon request.
Large discount for batch quantity , please contact sales@laseroptex for quotation
We can accept the credit payment by paypal for small order. The min order must above USD200
Many Institute and laborary have ordered our UV quartz slide
Part of customer as following:
1.Masdar Institute of Science &Technology（ United Arab Emirates）
2.Universiteit Twente（Nederland）
3.Colorado State University（USA）
4.TEL-AVIV UNIVERSITY ( ISRAEL)
5.University of Manchester(UK)
6.WEIZMANN INSTITUTE OF SCIENCE( ISRAEL)
7.The Hebrew University of Jerusalem( ISRAEL)
8.TDA Research ( USA)
9.University of Calgary(Canada)
10.University of Notre Dame(USA)
11.Centre for Research in Metallurgy(Belgium)
12.Griffith University(Australia)
13.UBC (University of British Columbia) Chemistry(CANADA)
14.Massachusetts Institute of Technology(USA)
15.Montclair State University(USA)
UV grade Quartz Microscope Slides& cover slips
Fused quartz microscope slides are thin, polished quartz materials used for their absolute UV transparency in medical, scientific and research applications.
Quartz Microscope slides have many applications for use in UV microscopy and UV confocal microscopy. As with quartz cover slips for chemical microscopy an important equation is that nothing is lost due to the absorption factor.
Fused quartz transparent microscope slides are useful for high temperature experiments due to the thermal and mechanical properties of fused quartz.
Laser Optex can now offer quartz slides in UV grade fused silica JGS1, a form of quartz that is even higher in purity than GE 124.
Meanwhile, Laser Optex also can produce the Special Microscope Slides as your requirement, We can design Microscope slides in other optical material such as BK7 Glass, Borosilicate, Quartz crystal, Sapphire ,CaF2,BaF2, MgF2, Silicon, Ge, ZnS, ZnSe etc, please contact us by e-mail sales@laseroptex, our sales will quote the price in 24hours.
Roughness: Not to be confused with the term "flatness", the roughness, which is sometimes referred to as "smoothness", can be measured with AFM and while we can't guarantee it as a specification, our periodic measurements with AFM suggest that the typical roughness is better than 2 nm. Some of our customers are now asking us to supply them with quartz slides that exhibit a surface roughness better than that. We are now able to offer the with surface roughness better than 0.5 nm.
High temperature applications: The Laser Optex Quartz Slides are often times used as substrates for high temperature experiments and we are asked about how high in temperature the slides can be taken before changes occur. That temperature is about 1250C as the slide will start to soften at about this point.

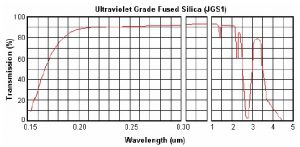

UV grade fused silica microscope slides are more suitable when higher transmission is required in the ultraviolet. UV fused silica has equal thermal and mechanical properties to quartz but is generally more expensive.
| UV Fused Silica Microscope Slides |
| UV Fused Quartz Microscope Slides | |
| Specifications | |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness tolerance | ±0.05mm for standard grade |
| Clear Aperture | >90% |
| Parallelism | <3' |
| Surface Quality | 40-20 scratch and dig |
| Flatness | 5λ per 25mm at 632nm |
| Bevel | <0.35mm×45° |
Standard grade UV fused quartz in stock
| Part No. | Dimension mm | Unti price for (1-10pcs) | Delivery time |
| QMS1001 | 10×10×0.075-0.125 | USD20.00 | in stock |
| QMS1002 | 10×10×0.15-0.18 | USD15.00 | in stock |
| QMS1601 | 16×16×0.075-0.125 | USD20.00 | in stock |
| QMS1602 | 16×16×0.15-0.18 | USD15.00 | in stock |
| QMS1901 | 19×19×0.075-0.125 | USD30.00 | in stock |
| QMS1902 | 19×19×0.15-0.18 | USD15.00 | in stock |
| QMS2201 | 22×22×0.075-0.125 | USD35.00 | in stock |
| QMS2202 | 22×22×0.15-0.18 | USD20.00 | in stock |
| QMS2501 | 25×25×0.075-0.125 | USD54.00 | in stock |
| QMS2502 | 25×25×0.15-0.18 | USD20.00 | in stock |
| QMS2503 | 25×25×0.25-0.30 | USD15.00 | in stock |
| QMS2504 | 25×25×0.35-0.40 | USD15.00 | in stock |
| QMS2505 | 25×25×0.5 | USD10.00 | in stock |
| QMS2510 | 25×25×1.0 | USD10.00 | in stock |
| QMS5500 | 25×50×0.10-0.125 | USD60.00 | in stock |
| QMS5501 | 25×50×0.15-0.18 | USD30.00 | in stock |
| QMS5502 | 25×50×0.25-0.30 | USD20.00 | in stock |
| QMS5503 | 25×50×0.35-0.40 | USD10.00 | in stock |
| QMS5505 | 25×50×0.5 | USD10.00 | in stock |
| QMS5510 | 25×50×1.0 | USD10.00 | in stock |
| QMS7620 | 76.2×25.4×0.10-0.125 | USD70.00 | in stock |
| QMS7621 | 76.2×25.4×0.15-0.18 | USD45.00 | in stock |
| QMS7622 | 76.2×25.4×0.35-0.40 | USD20.00 | in stock |
| QMS7623 | 76.2×25.4×1.0 | USD17.00 | in stock |
Note: Other sizes and thickness are available upon request.
Large discount for batch quantity , please contact sales@laseroptex for quotation
UV Fused Silica Cover Slides
Quartz Cover Slips are ultra thin polished quartz glass substrates used for their absolute UV transparency for medical, scientific and research applications. When viewing the surface a quartz cover slip can slow evaporation and compress the most viewed object to protect the microscope lens.
| Part No. | Size | thickness | Unit price for 1-10pcs | Delivery time |
| QCSC1001 | 10 mm | 0.10mm | USD20 | in stock |
| QCSC1002 | 10 mm | 0.20mm | USD10 | in stock |
| QCSC1005 | 10mm | 0.35mm | USD10 | in stock |
| QCSC1007 | 10 mm | 0.7mm | USD10 | in stock |
| QCSC1010 | 10 mm | 1.0mm | USD10 | in stock |
| QCSC1015 | 10 mm | 1.5mm | USD10 | in stock |
| QCSC1020 | 10 mm | 2.0mm | USD10 | in stock |
| QCSC1201 | 12.5 mm | 0.10mm | USD20 | in stock |
| QCSC1202 | 12.5 mm | 0.20mm | USD10 | in stock |
| QCSC1205 | 12.5mm | 0.35mm | USD10 | in stock |
| QCSC1207 | 12.5mm | 0.7mm | USD10 | in stock |
| QCSC1210 | 12.5mm | 1.0mm | USD10 | in stock |
| QCSC1215 | 12.5mm | 1.5mm | USD10 | in stock |
| QCSC1220 | 12.5mm | 2.0mm | USD10 | in stock |
| QCSC1501 | 15.0 mm | 0.10mm | USD20 | in stock |
| QCSC1502 | 15.0 mm | 0.20mm | USD10 | in stock |
| QCSC1505 | 15.0mm | 0.35mm | USD10 | in stock |
| QCSC1507 | 15.0mm | 0.7mm | USD10 | in stock |
| QCSC1510 | 15.0mm | 1.0mm | USD10 | in stock |
| QCSC1515 | 15.0mm | 1.5mm | USD10 | in stock |
| QCSC1520 | 15.0mm | 2.0mm | USD10 | in stock |
| QCSC2001 | 20 mm | 0.10mm | USD30 | in stock |
| QCSC2002 | 20 mm | 0.20mm | USD15 | in stock |
| QCSC2005 | 20 mm | 0.35mm | USD15 | in stock |
| QCSC2007 | 20 mm | 0.7mm | USD15 | in stock |
| QCSC2010 | 20 mm | 1.0mm | USD15 | in stock |
| QCSC2015 | 20 mm | 1.5mm | USD15 | in stock |
| QCSC2020 | 20 mm | 2.0mm | USD15 | in stock |
| QCSC2501 | 25 mm | 0.075-0.125mm | USD30 | in stock |
| QCSC2502 | 0.984" (25mm) | 0.15-0.18mm | USD20 | in stock |
| QCSC2503 | 0.984" (25mm) | 0.35mm | USD20 | in stock |
| QCSC2507 | 25 mm | 0.7mm | USD20 | in stock |
| QCSC2510 | 25 mm | 1.0mm | USD20 | in stock |
| QCSC2515 | 25 mm | 1.5mm | USD20 | in stock |
| QCSC2520 | 25 mm | 2.0mm | USD20 | in stock |
Note: Other sizes and thickness are available upon request.
Large discount for batch quantity , please contact sales@laseroptex for quotation
We can accept the credit payment by paypal for small order. The min order must above USD200
Many Institute and laborary have ordered our UV quartz slide
Part of customer as following:
1.Masdar Institute of Science &Technology（ United Arab Emirates）
2.Universiteit Twente（Nederland）
3.Colorado State University（USA）
4.TEL-AVIV UNIVERSITY ( ISRAEL)
5.University of Manchester(UK)
6.WEIZMANN INSTITUTE OF SCIENCE( ISRAEL)
7.The Hebrew University of Jerusalem( ISRAEL)
8.TDA Research ( USA)
9.University of Calgary(Canada)
10.University of Notre Dame(USA)
11.Centre for Research in Metallurgy(Belgium)
12.Griffith University(Australia)
13.UBC (University of British Columbia) Chemistry(CANADA)
14.Massachusetts Institute of Technology(USA)
15.Montclair State University(USA)
