ZnSe optics
The author : admin   time : 2020-02-24     Click on the number of times : 338











Zinc Selenide( ZnSe) is used for optical windows, lenses, mirrors and prisms particularly for infrared applications. The transmission range is 0.5 ~ 22 μm. Used for high power CO2-laser optics at 10.6 microns. Zinc Selenide is produced by synthesis from zinc vapour and H2Se gas, forming as sheets on graphite susceptors. It is microcrystalline in structure, the grain size being controlled to produce maximum strength.

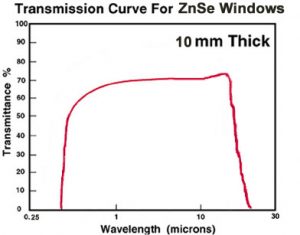

1










Main properties of CVD ZnSe2





































Transmissive wavelength

0.5~22μm


Density
5.27g/cm3
Transmittance >65% (0.5~8μm)
>70% (8~13μm)
Bending strength
56MPa
Knoop hardness
130 kg/mm2
Refractive index
2.403 (10.6 at μm)
Absorption coefficient
0.0006/cm (10.6 at μm)
Thermal expansion coefficient
7.1×10-6 (273K)






Laser Optex provide OEM service for industry and research on high quality ZnSe optics.

















































High Precision



Standard



Specifications



Diameter Tolerance



+0.0/-0.1mm



+0.0/-0.1mm



Thickness tolerance



±0.05mm



±0.2mm



Clear Aperture



>85%



>80%



Parallelism



<30 seconds



3'



Surface Quality



10-5 scratch and dig



80-50 scratch and dig



Wavefront Distortion



λ/8 per 25mm at 632nm



2λ per 25mm at 632nm



Bevel



< 0.25mm×45º



<0.25mm×45º





Feature product

1.ZnSe prism ( ATR prism, AR coated)





2.AR Coating ZnSe Windows for high power CO2 laser

catalog and price list download (89K)







































Part No.

Dimension  mm

Price 1-5pcs , USD

LZW122

Φ12.7×2 mm , AR10.6μm

36.50

LZW202

Φ20.0×3 mm , AR10.6μm

43

LZW252

Φ25.4×3 mm , AR10.6μm

85

LZW323

Φ32.0×3 mm , AR10.6μm

220

LZW385

Φ38.1×5 mm , AR10.6μm

275

LZW506

Φ50.0×6 mm , AR10.6μm

525

3

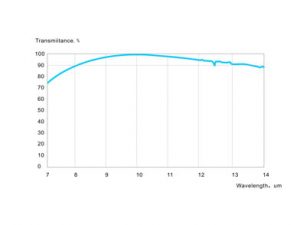

AR coating for ZnSe opics at 8-14μm.

3.BBAR Coated ZnSe window for FTIR spectroscopy
























Part No.

Dimension  mm

Price 1-5pcs , USD

FTZE252

Φ25..4×2 mm , AR2.5-12μm

125

FTZE323

Φ32.0×3 mm , AR2.5-12μm

280

FTZE503

Φ50.0×3 mm , AR2.5-12μm

375

4

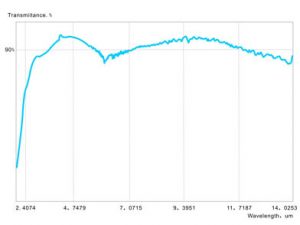

BBAR coating for ZnSe optics at 3-12μ m.

IR grade ZnSe for FTIR catalog and price list download(107K)
